Client: EDF Energy
Role: Principal Contractor
Scope
- Deck Waterproofing
- Concrete Repair & Anti-Carbonation Coatings
Details
- Significant concrete repairs to soffits, columns & walls
- Walkway demarcation

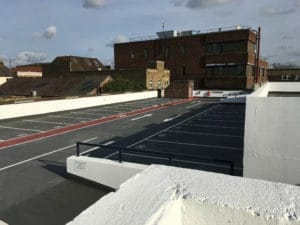

The scope of this project was to fully refurbish the North, South, Staff and Visitor car parks as part of an ambitious 9-week programme.
![EDF Energy EDF Energy](https://cemplas.co.uk/wp-content/uploads/2020/10/IMG_0654-1.jpg)
Before: Dark & Unwelcoming Environment
![EDF Energy EDF Energy](https://cemplas.co.uk/wp-content/uploads/2020/10/IMG_0629-1.jpg)
Before: Failed Existing System
![EDF Energy EDF Energy](https://cemplas.co.uk/wp-content/uploads/2020/10/progress-03-scaled.jpg)
During: Ramps Halfway Through Refurbishment
Significant repairs had to be carried out all car parks following concrete damage caused by the long-term effects of both carbonation and chloride-induced corrosion. Sika’s Monotop concrete repair system was utilised for concrete repairs to all soffits, beams, columns and walls. These were also protected with Sikagard anti-carbonation coatings.
Circa 1,810m2 of parking decks were completely re-waterproofed with Sika’s RB58 car park decking waterproofing system. This rapid-curing system incorporates Sika Reemat Premium encapsulated within the resin layer to ensure full crack-bridging ability and durability when applied directly onto asphalt deck areas. This system was applied in contrasting colours of mid-grey for both the traffic aisles and parking bays with bright red to highlight the pedestrian walkways for increased safety.
![EDF Energy EDF Energy](https://cemplas.co.uk/wp-content/uploads/2020/10/after-1-2-scaled.jpg)
After: Light & Bright Interior Improvements
![EDF Energy EDF Energy](https://cemplas.co.uk/wp-content/uploads/2020/10/After-2-3-scaled.jpg)
After: Fully Protected & Watertight Deck
![EDF Energy EDF Energy](https://cemplas.co.uk/wp-content/uploads/2020/10/After-3-5-scaled.jpg)
After: Fully Protected Ramps
